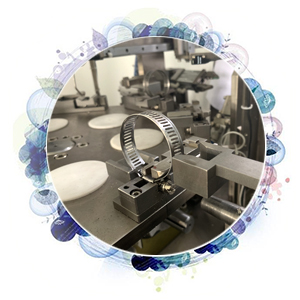

High precision large American hose clamp manufacturing machine hose clamp assembly machine price sold by manufacturers
This large American type throat hoop machine can automatically assemble the throat hoop through straight line and rotary table. All parts such as screws, connecting strips, clamps and hoses are rolled and locked by the machine. Snowway machine and process control system is a new patented design, which adopts fully automatic cutting and stamping, welding and intelligent die solution technology. Our hose clamp machine not only maximizes production efficiency and quality, but also reduces a lot of costs for hose clamp manufacturers. The machine has the advantages of advanced, high automation level, stable performance, wide adjustment range, high efficiency and good effect.
| product name | Hose clamp machine |
| Size | 2600mm (length) *1200mm (width) *1800mm (height) |
| Weight | 1 ton |
| Working area | 5000mm(length)*3000mm(width) |
| Strength | Single-phase power supply 115v, 60Hz (ANSI electrical standard) |
| Pressure | 0.5Mpa-0.7Mpa (72.5-101.5 PSI) |
| Free torsion | <=0.4 |
| Destructive torsion | More than 13.56N/M (120 inches/lb) |
| Equipment failure rate | Less than 0.5% |
| Efficient | 1000 pcs/hour |
| Warranty period | One year |
| Extra service | Professional technical training |
| Major component brands | Japan SMC, Germany SIEMENS, Japan Panasonic, Japan Keyence, France Schneider, Germany BASLER, Taiwan HIWIN. |
 |
1. We have sold hundreds of machines at home and abroad, and they are running well so far. Over time, our machines become more precise, more efficient and more stable.
|
|
2. We are professional in design and manufacture automatic assembly hose clamp machine with 10 years of experience . Our technology of automatic assembly hose clamp machine is mature and reliable. |
|
|
3. The production efficiency is 1000pcs/hour more or less and working accuracy are all much higher than handmade, therefore satisfying the production requirements of new generation manufactures of hose clamp. |
|
|
4. An automatic assembly hose clamp making machine can be designed as Multi-size according to client's requirement. Maybe two or four different sizes in one machine is available if the structure of clients' hose clamp allowed. |
|
|
5. The same as another many parameters of machine, Free torque and broke torque of hose clamp can be customized . Our flexibility customization design to ensure all customer's requirements are met. |
|
 |
6. Compared with the traditional manual control manner, this machine has many advantages such as stable and simple operation . Working content is only adding semi-finished product material on bin every 4 hours. |
| 7. The production is controlled by PLC microcomputer which will records all data and it equipped with human-computer interface to make sure most all the technical parameters can be set on the touch screen. |
The specific classification of hose clamp -Big American hose clamp machine.
The function of our machine is assembly three parts together and then inspect the quality to make sure the 100% good product.
We're not responsible for semi-finished making machines.
All the unassembled parts shall be provided by client.
Unassembled parts: housing/strap/screw.|
1. The strap will be transferred into the machine directly in one direction through the automatically flatting system. What follow is entering strap will be cut into right size and to be punch in right shape. |
 |
 |
2. The housings and clip of hose clamp will be transferred into the machine directly in one direction as well by vibration linear feeder with bin. They will be installed into the punched and cut strap firmly. |
|
3. The strap of hose clamp with housing and clip will be coiling by our machine in very perfect circle and to be fixed by tooling system and then transfer into next step smoothly. |
 |
|
|
4. The screw of hose clamp will be transferred into the machine directly in one direction by vibration linear feeder with bin. The screws to be tighten into the assembled strip of hose clamp with housing and clip. |
|
5. After above steps, a hose clamp already completed. There are inspections system on the discharge outlet to recognize whether the finished product is locked tightly enough and the free torque is completely measures up to the requirement. |
 |
|
|
6. The final product is grabbed from the fixture and automatically divided into good and bad. The good products flow into the good product container, and the bad products flow into the bad product container for collection. |
